Exporting 3D scenes

Overview​

In Redot, it is possible to export 3D scenes as a glTF 2.0 file. You can export as a glTF binary (.glb file) or glTF embedded with textures (gltf + .bin + textures). This allows you to create scenes in Redot, such as a CSG mesh blockout for a level, export it to clean it up in a program such as Blender, and then bring it back into Redot.

note

Only Blender 2.83 and newer can import glTF files exported by Redot.

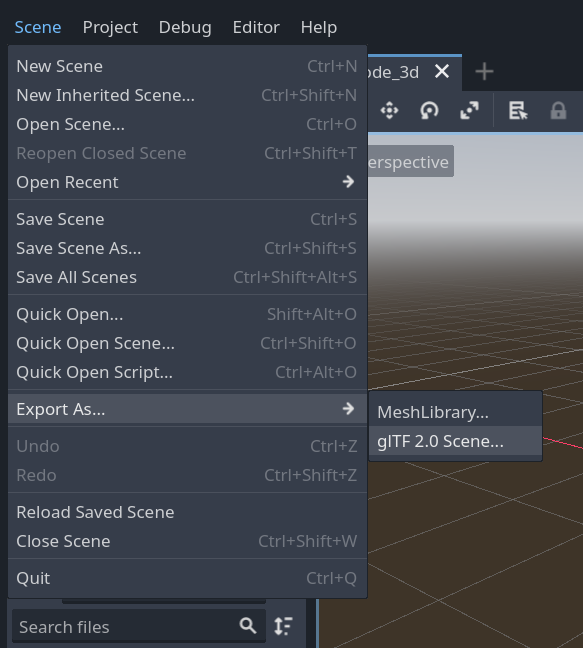

To export a scene in the editor go to Scene > Export As... > glTF 2.0 Scene...


Limitations​

There are several limitations with glTF export.

  • No support for exporting particles since their implementation varies across engines.
  • ShaderMaterials cannot be exported.
  • No support for exporting 2D scenes.
info

3D scenes can be saved at runtime using runtime file loading and saving , including from an exported project.
